Pressure Control Valve Manufacturer in Taiwan
Download Catalogue

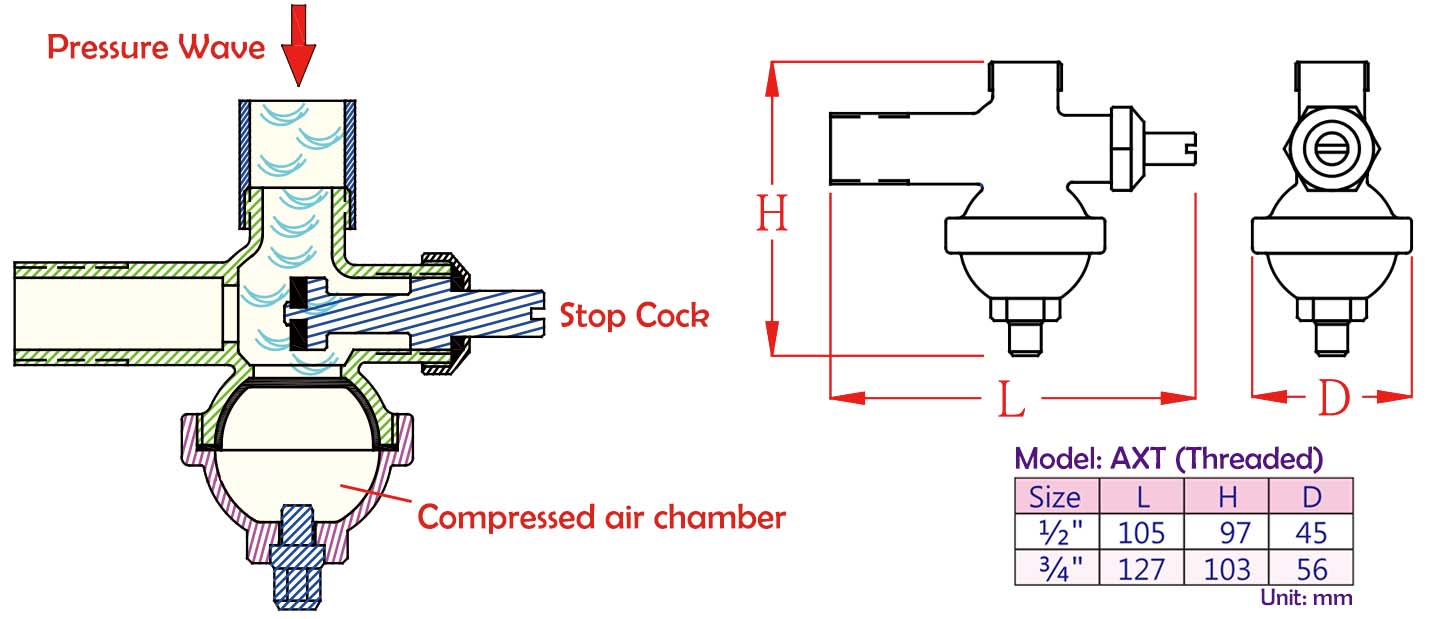

Angle Valve Style Water Hammer Arrestor


  • Brass

  • Thread 1/2” & 3/4”

  • Max 10kgf/cm2

  • NBR; Viton

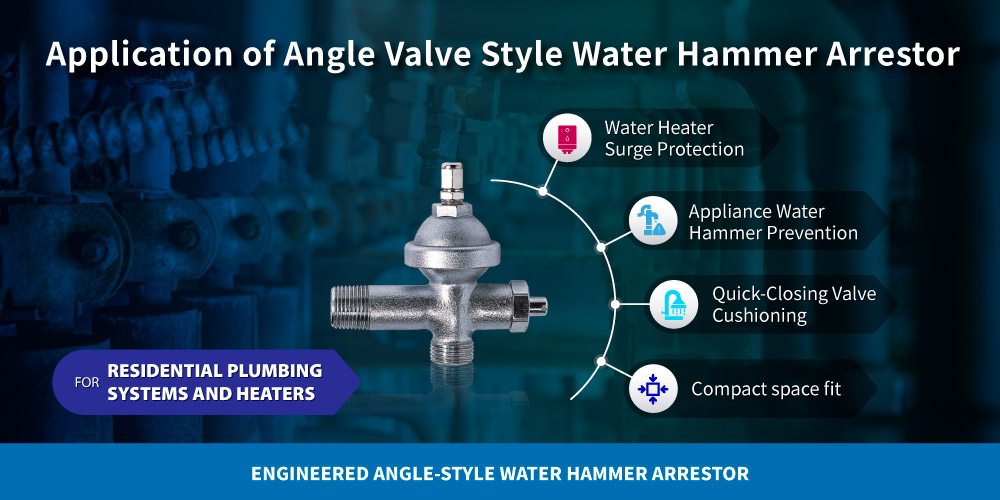

Modle AXT, a Water hammer arrestor for household application are used to absorb the shock when water flowing in a piping system suddenly stops due to fast closing shutoff valves, dishwashers, and clothes washers. This action protects against annoying and potentially damaging effects of water hammer.


◆ Protect pipelines from water hammer effect.

◆ Decrease back flow pressure by buffering/absorb such pressure.

◆ Airbag design - respond to water hammer effect quickly.

◆ Absorb water hammer directly .

◆ Adjustable Air bag pressure.

◆ Convenient in-style mounts either horizontally or vertically.

◆ Easy maintenance, maintenance kits are available upon request.

DatasheetAdd to inquiry
