Pressure Control Valve Manufacturer in Taiwan
Download Catalogue
Direct Acting Pressure Reducing Valve

RET / REF

  • Stainless Steel 316

  • Thread ½'' to 2'' ; Flange ½'' to 6''

  • 1-6 kgf/cm2 ; 4-10 kgf/cm2 ; 8-13 kgf/cm2

  • NBR ; Viton ; Teflon (Steam)

The Model RET/REF, are designed to protect pipeline system or equipments from overload pressure, maintaining consistant and precise pressure to optimize system and equipments. Wide range of application, easy maintenance and precise pressure control made our design of Stainless Steel Direct Acting Pressure Reducing Valve has been utilized and installed in more than 90 countries around the world.

What is the function of Direct Acting Pressure Reducing Valve?

Pressure Reducing Valve is a control valve that reduces the input pressure of a fluid to a desired value at its output. Protecting pipeline and systems from overpressure by providing consistent outlet pressure.

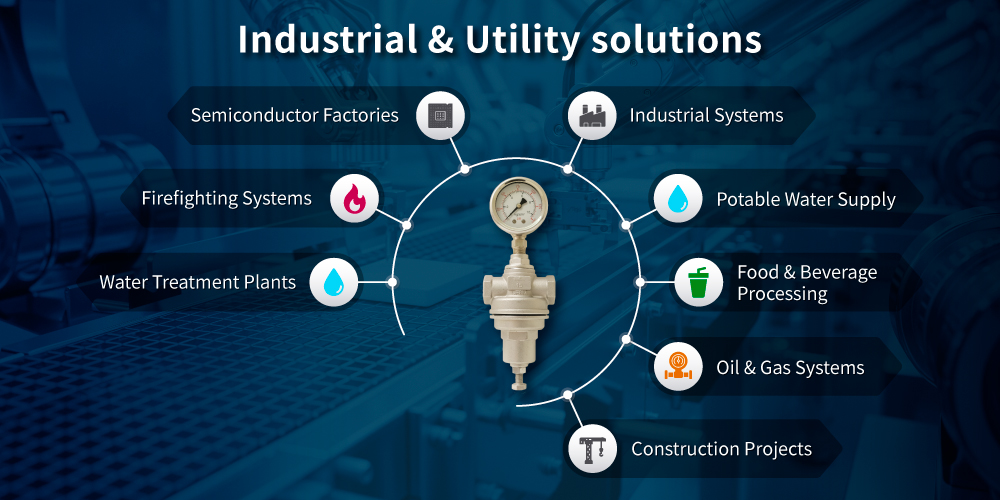

Application of Direct Acting Pressure Reducing Valve

Our Direct Acting Pressure Reducing Valve has utilized in wide range of sector, such as (not limited to) Industrial, Building, Food & Beverage, Pharmaceutical and Water Sectors. Generally used for gases and liquids.

Project Reference : Plant Air Pipeline in Australia

In a plant air pipeline system in Australia, our Model RET 316 stainless steel direct-acting pressure reducing valve demonstrated stable and reliable control performance. Constructed from corrosion-resistant, high-strength stainless steel, the valve offers excellent weldability, hygienic properties, and resistance to high temperatures, making it ideal for demanding applications. It not only provided precise pressure regulation but also optimized the overall system performance, fully meeting the client's stringent requirements for safety, durability, and efficiency—proving its outstanding reliability in industrial environments.

An Illustration Sketch for Installation of Z-Tide Direct Acting Pressure Reducing Valve

An Illustration Sketch for Installation of Direct Acting Pressure Reducing Valve

Core Features and Benefits of Stainless Steel Direct Acting Pressure Reducing Valve

① Direct acting pressure reducing valve is suitable for general liquids and gases.

WRAS & ACS Certifications for Drinking Water and Beverage application.

③ Suitable for process automation control and many general purpose applications.

④ Convenient in-style mounts either horizontally or vertically.

⑤ Wide range capacity to handle local water supply pressure and adjust to specific pump specifications.

⑥ Adjusting nut allows easy calibrated pressure adjustment.

⑦ SS316 lower body and upper body construction for durability and compatibility.

⑧ The balanced piston design provides a constant outlet pressure even when the inlet pressure is unstable. The supplied pressure gauge indicates the outlet pressure.

⑨ Easy maintenance, maintenance kits are available upon request.

Certificate



Catalogue(Model RET/REF)Add to InquiryProject Reference
