Pilot Type Control PRV: Unique Conduit-Free Design Enables Rapid On-Site Pressure Adjustment

Model BTR/ BFR, A Pilot Control Pressure Reducing Valve reduces pressure of inlet flow into desired outlet pressure. Pressure Reducing Valve(PRV) can prevent damage within pipelines due to high pressure. Unique piston design to exclude conduit piping, made it compact size which is easy for transportation and assembling. Simple pilot control allows on-site pressure adjusting.

Application of Pilot Control Pressure Reducing Valve

Our Pilot Control Pressure Reducing Valves are most suitable for Hydraulic systems. Hydraulic Pressure Reducing Valves are widely utilized in many applications, especially for Building & Construction, Fire Protection, Mining and Waterworks.

Key Features and Benefits of Pilot Control Pressure Reducing Valve

• No Conduit, Compact size for easy Transportation, Installation, Maintenance and Repair.
• Maintain outlet pressure regardless fluctuate inlet pressure.
• Pressure reducing valve is suitable for general liquids and gases.
• Convenient in-style mounts either horizontally or vertically.
• Wide range capacity to handle local water supply pressure and adjust to specific pump specifications.
• Adjusting pilot allows easy calibrated pressure adjustment.
• Easy maintenance, maintenance kits are available upon request.

What are the advantages of Z-Tide Piston Type Pressure Reducing Valves compared to other Diaphragm Type Pressure Reducing Valve?

• Wide Material Options: Available in Cast Iron, Ductile Iron, Bronze, Stainless Steel 304, and Stainless Steel 316 for superior durability and chemical compatibility.
• Larger Flow Capacity: Designed with a bigger chamber, providing higher flow rates and improved system efficiency.
• Conduit-Free Design: No external piping or conduit required, simplifying installation and maintenance.
• Versatile Size Range: Available in sizes from 1.5'' up to 56'', suitable for small and large-scale applications.
• Flexible Installation: Can be installed horizontally or vertically, adapting to different pipeline layouts.
• Certified Quality: Meets international standards with UL, WRAS, CE, and ATEX certifications, ensuring reliability and compliance for various industrial environments.

Project Reference: South Africa Pressure Reducing Station for Mining Applications

In a mining pressure reducing station in South Africa, the client adopted our pilot control pressure reducing valve (Model BFR, 6") and pilot control pressure relief valve (Model BFL, 4") to stabilize high-pressure flow within the pipeline system. These valves, constructed from ductile iron with flange ends, are designed for demanding industrial environments, ensuring strength and durability under harsh mining conditions.

Model BFR features a unique piston structure that eliminates conduit piping, making it compact and easy to maintain. Its pilot control system allows for precise on-site pressure adjustments. Together, the BFR and BFL valves protected the mining pipeline from pressure surges, delivering outstanding performance and long-term reliability in a mission-critical setting.

Frequently Asked Questions(FAQ) of Piston Type Control Pressure Reducing Vale

Q1: How does a Piston Type Control Pressure Reducing Vale work?

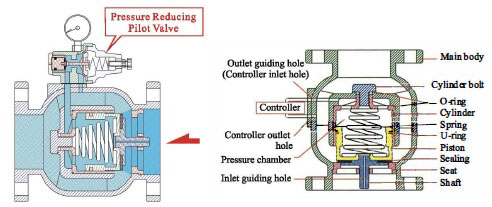

The piston inside the valve moves in response to pressure changes. A pilot control system allows precise adjustment of the outlet pressure. When inlet pressure rises above the set point, the piston closes slightly to reduce pressure; when inlet pressure drops, it opens to maintain the desired outlet pressure.

Q2: Can Piston Type Control Pressure Reducing Valve be installed horizontally or vertically?

Yes, Piston Type Pressure Reducing Valve are designed for versatile installation. They can be mounted horizontally or vertically, depending on pipeline layout and space constraints.
