Pressure Control Valve Manufacturer in Taiwan

Products

Download Catalogue

Direct Acting Design Valves

Pressure Reducing Valve Set RS (5 in 1)

RS

Pressure Reducing Valve Set RS (5 in 1)

  • Bronze

  • Thread ¾'' & 1''

  • 1.5-3kgf/cm2

  • NBR

Compared to traditional pressure reducing valve sets, Model RS combines all the essential elements for a pipeline, offering more sapce-efficient and cost-effective solutions.

Key Features and Benefits of Direct Acting Pressure Reducing Valve Set 5 in 1

  • 5-in-1 Functionality: Combines the functions of an isolation valve, check valve, and pressure reducing valve in one compact unit. Filter net is also included.
  • Optional By-Pass: Equipped with a by-pass feature for added flexibility.
  • Compact Design: Clean, streamlined construction minimizes installation space.
  • High Performance: Supports a maximum working pressure of 12 kgf/cm2.
  • Easy Maintenance: Simple to service, with maintenance kits available upon request.

Why choose Z-Tide Direct Acting Pressure Reducing Valve Set 5 in 1?

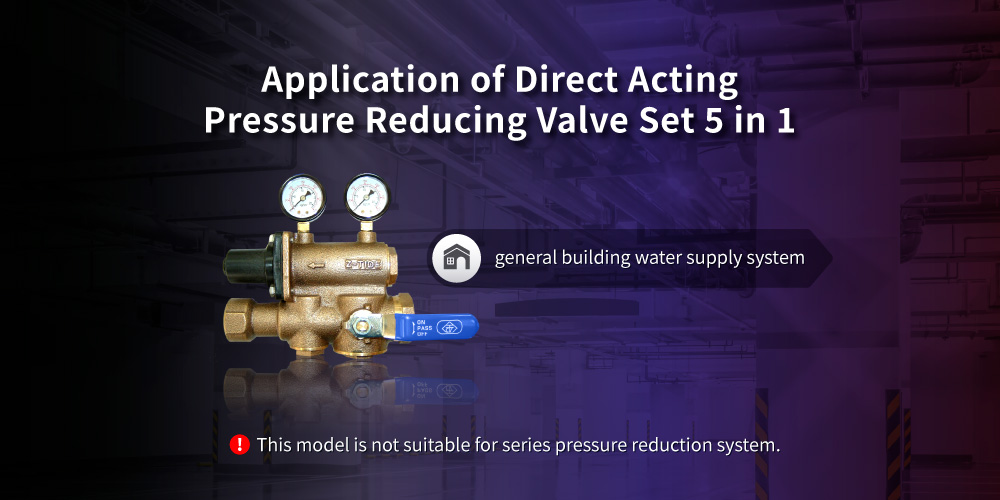

Compared to the traditional design, this model integrates the functions of an isolation valve, check valve, and pressure reducing valve into a single compact unit, complete with a built-in filter net. This not only save the installation space but also cost saving. Suitable for general building water system.

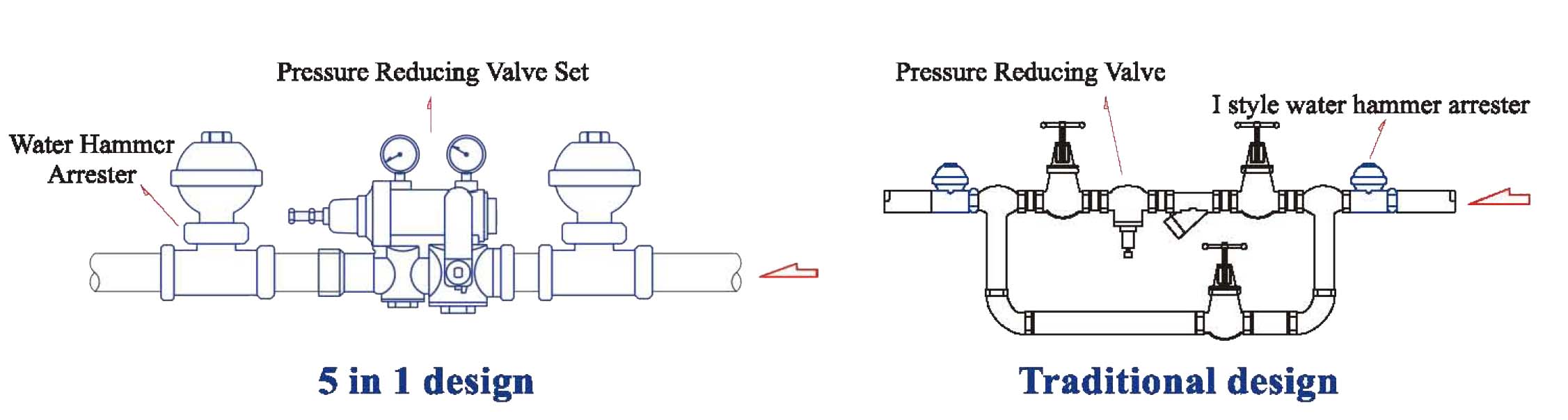

Z-Tide Pressure Reducing Valve Set – 5 in 1 design

Frequently Asked Questions (FAQ) about Direct Acting Pressure Reducing Valve Set 5 in 1

Q1: What is included in a PRV set?

A complete PRV set is include: Pressure reducing valve, Isolation valve, Check valve, Filter or strainer, Pressure gauge, Optional bypass line.

Q2: Where should a PRV set be installed?

Typically near the water meter or where the supply pressure enters a building or system. It should be installed horizontally.

Catalogue(Model RS) Add to Inquiry
