Reliable Solution for Ensuring Stable Upstream Pressure: SS316 Direct Acting PSV

The RFT/RFF is a direct-acting Pressure Sustaining Valve (PSV) designed to maintain a set upstream pressure. Its back-pressure chamber controls the valve gate for quick and precise adjustments. The gate stays closed during normal operation and opens only when upstream pressure rises above the set-point, closing again as pressure drops to keep the system stable.

Application of Direct Acting Pressure Sustaining Valve

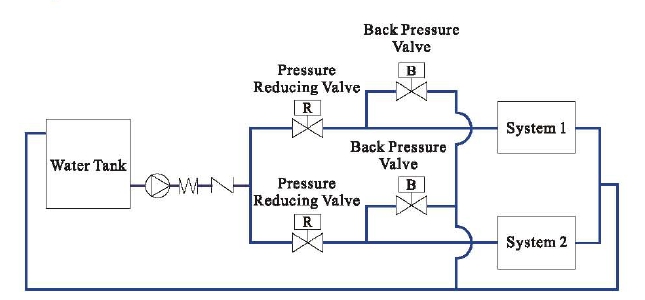

Installation example of the Z-Tide Stainless Steel Direct Acting Pressure Sustaining Valve with recommended piping layout — Example of a Pressure Sustaining Valve set-up

Key Features and Benefits of Direct Acting Pressure Sustaining Valve

Maintains stable pressure throughout the pipeline system.
Ideal for process automation and a wide range of general-purpose applications.
Convenient in-line installation, compatible with both horizontal and vertical orientations.
Broad capacity range to accommodate local water supply pressures and specific pump requirements.
Adjustment nut allows precise and effortless pressure calibration.
SS316 upper and lower body for enhanced durability and media compatibility.
Easy to maintain, with maintenance kits available upon request.

Frequently Asked Questions (FAQ) about Direct Acting Pressure Sustaining Valve

Q1: How does a Direct Acting Pressure Sustaining Valve work?

The back-pressure chamber directly controls the valve gate. When upstream pressure exceeds the setpoint, the valve opens to release excess pressure; when pressure is below the setpoint, the valve remains closed.

Q2: When should I use a Pressure Sustaining Valve instead of a Pressure Reducing Valve?

Use a pressure sustaining valve when you need to prevent upstream pressure from exceeding a setpoint, protecting equipment and avoiding overpressure. A pressure reducing valve, in contrast, reduces downstream pressure to a desired level regardless of upstream pressure.
