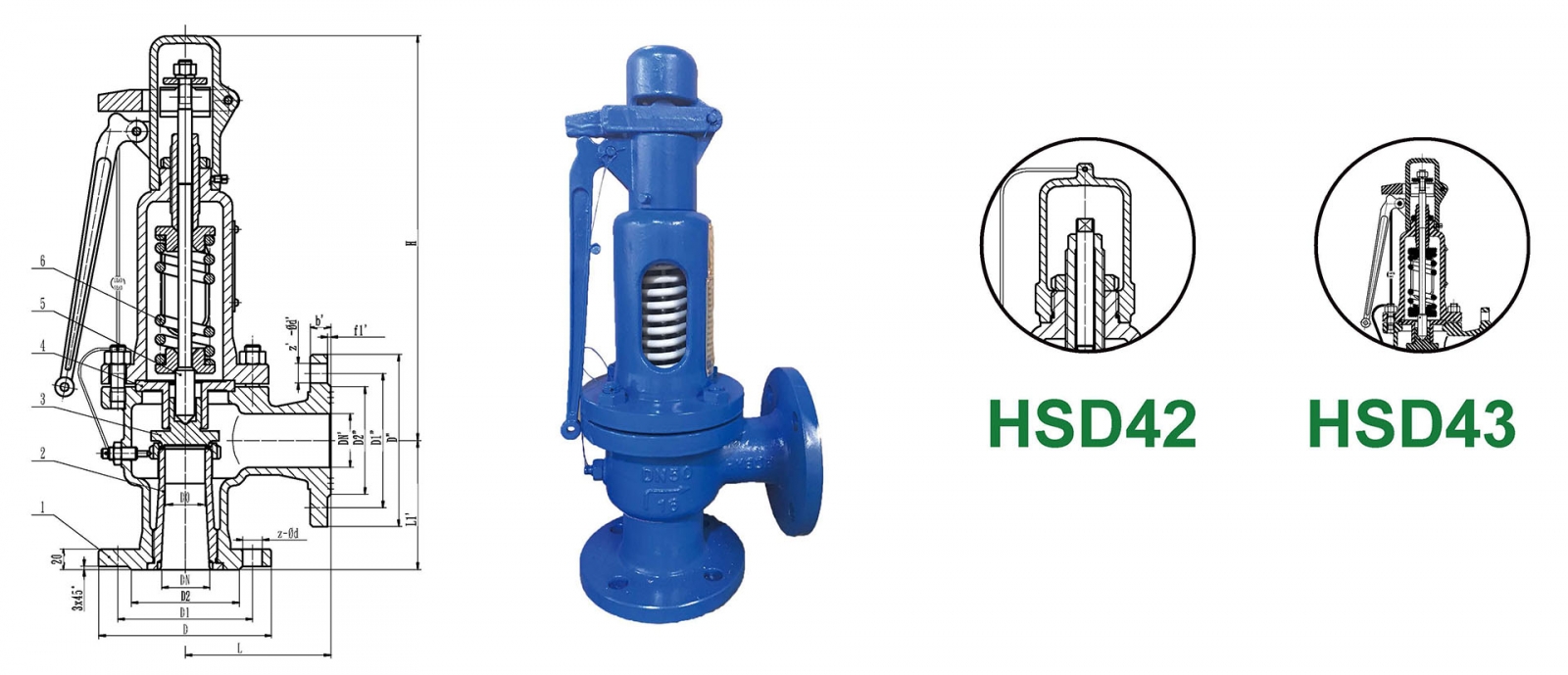

Open Bonnet Low Lift Safety Valve for Steam and High-Temperature Gas Service.

Hants model HSD, a low safety valve with an open bonnet is a type of pressure relief valve designed for high-temperature applications, such as steam, where the bonnet (top part) is open to the atmosphere. This design allows the spring chamber to be vented , which helps cool the spring and enables the use of standard steel springs instead of expensive, high-temperature or special materials.

The open bonnet design allows the spring chamber to be vented to the atmosphere. This helps reduce heat accumulation around the spring, making the valve suitable for clean steam and high-temperature gas service where bonnet venting is acceptable. The low lift structure provides controlled pressure relief, compact installation, and economical protection for utility and auxiliary systems.

Hants is a sub-brand of us. As a specialized manufacturer of open bonnet low lift safety valves and fittings, we provide reliable pressure relief and overpressure protection solutions for various industries.

Application of Open Bonnet Low Lift Safety Relief Valve

• Small steam boilers.
• Steam generators.
• Steam pipelines.
• Heating systems.

Key Features and Benefits of Open Bonnet Low Lift Safety Valve

• Open Bonnet Design: Bonnet is vented to atmosphere, Prevents pressure build-up above the spring, Suitable for clean, non-hazardous service.
• Low Lift Operation: Limited disc lift during opening, Stable and smooth relief at low set pressures, Minimizes chatter and vibration.
• Designed for Gas & Vapor Service: Commonly used for air, steam, and non-toxic gases, Quick response to overpressure conditions.
• Simple & Robust Construction: Fewer components compared to full-lift valves, Easy inspection and servicing.
• Accurate Set Pressure: Reliable and repeatable opening pressure, Consistent performance over multiple cycles.
• Cost-Effective Design: Lower manufacturing and maintenance cost, Ideal for utility and auxiliary applications.
• Lightweight & Compact: Reduced overall weight, Easy installation on small nozzles and pipelines.
• Standards Compliance: Typically designed as per ASME Section VIII / IS / DIN standards

Frequently Asked Questions(FAQ) about Open Bonnet Low Lift Safety Valve?

Q1: Why engineer design open bonnet (open yoke) lift safety valve?

Engineers design an open bonnet lift safety valve to provide a visual indicator of valve operation and allow for the standard use of a standard steel spring at high temperatures, such as those found in steam applications. The exposed or open bonnet allows the bonnet chamber to be vented to the atmosphere, enabling the use of a standard spring rather than a specialized, more expensive high-temperature spring or a protective bellows, thereby protecting the spring from the high-temperature fluid.

Q2: Can an open bonnet safety valve be used for toxic or flammable gas?

No. An open bonnet safety valve is generally not recommended for toxic, flammable, corrosive, or hazardous media because the bonnet is vented to the atmosphere. If the medium must be contained, a closed bonnet, packed lever, bellows, or other sealed safety relief valve design should be considered.

Catalogue(Model HSD)Add to Inquiry
