Grooved Type Butterfly Valve with Signal Switch – UL Listed and NSF Certified Model Options

Grooved Type Butterfly Valve( Hants Model HBF-300G), cuts or regulates the flow of fluid through the piping systems. It's available in different certified models, including a UL listed model for fire protection systems and an NSF/ANSI 372 & NSF/ANSI/CAN 61 certified model for drinking water applications. Customers can select the appropriate version based on system requirements, certification needs, and application environment.

Hants is a sub-brand of us. As a professional manufacturer of grooved type butterfly valve and replacement parts, supplying reliable fire protection solutions for various industries.

Red Coating / UL Listed Blue Coating / NSF Certificate

Application of UL Grooved Type Butterfly Valve with Signal Switch

• Used as a control valve in fire protection piping, such as sprinkler and standpipe systems, to turn water flow on or off.
• Equipped with a signal switch for remote monitoring, the valve sends a signal to a control panel when its position changes, providing signal detection and status indication.

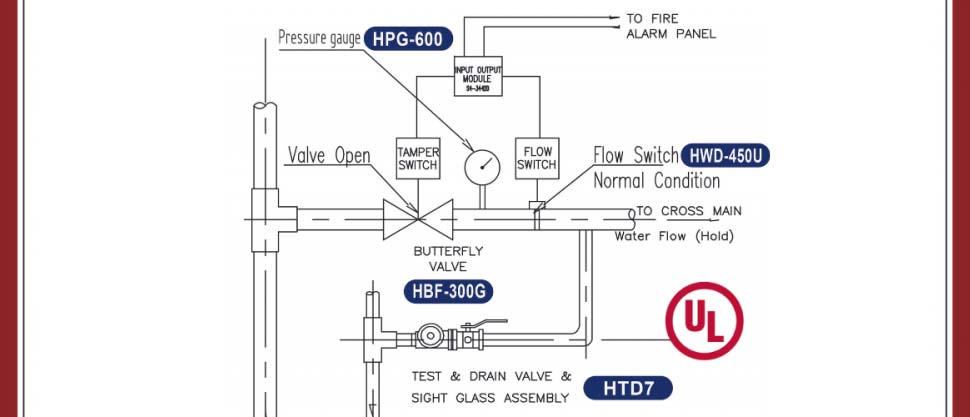

• Suitable for zone control stations and installed before or after alarm valves and deluge valves in high-rise buildings and industrial fire safety networks.
• Facilitates fast installation and maintenance due to grooved end connections.
• Approved for use both indoors and outdoors in fire inflow water, drain pipe, and water distribution systems, ensuring system integrity and compliance with UL/FM standards.

Application of NSF Grooved Type Butterfly Valve with Signal Switch

• Certified to NSF/ANSI standards to ensure lead-free and non-toxic materials, making it perfectly safe for drinking water treatment, storage, and distribution networks.
• Equipped with an integrated signal switch that sends real-time position data to control rooms, allowing operators to monitor whether clean water or process lines are open or closed.
• Suitable for water booster pump stations, zone control loops, and main water supply lines in commercial buildings, hospitals, and hotels.
• Utilizes grooved end connections to drastically reduce assembly time, eliminate welding, and absorb piping stress or vibration
• Approved for both indoor and outdoor installations in water treatment plants, industrial process water systems, and municipal clean water distribution networks.

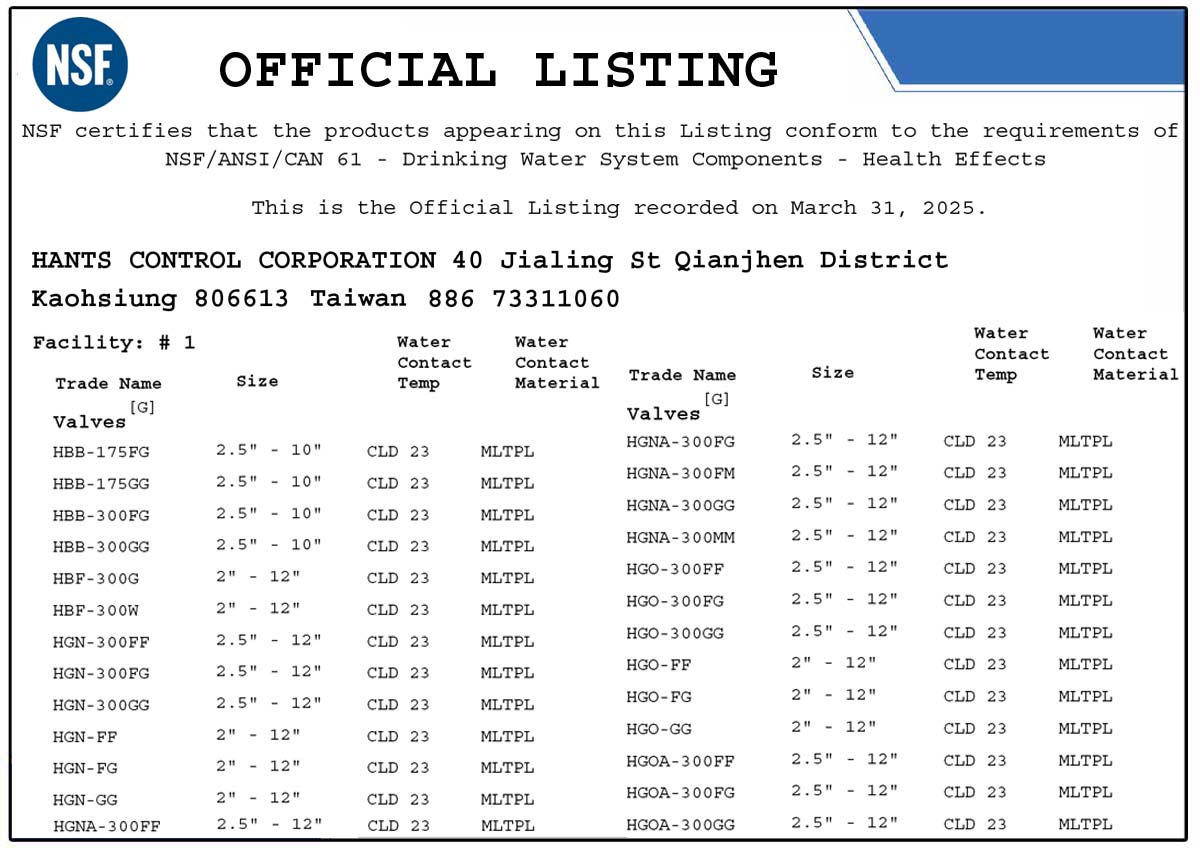

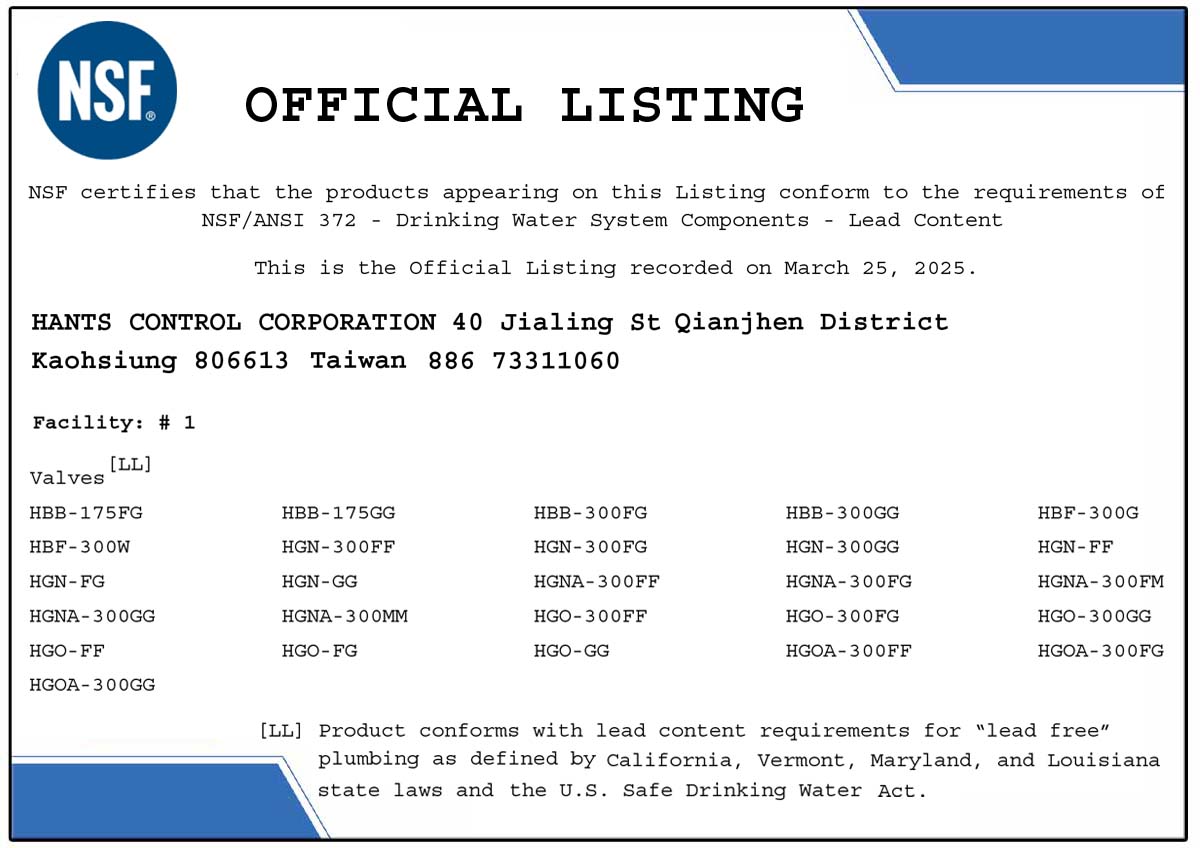

Drinking Water System Components: Lead Content (NSF/ANSI 372) , Health Effects (NSF/ANSI/CAN 61)



Key Features and Benefits of Grooved Type Butterfly Valve with Signal Switch

• UL Listed Grooved Type Butterfly Valve is suitable Fire Protection Piping Sprinkler System.
• NSF certified Grooved Type Butterfly Valve is suitable Water Supply System.
• Lightweight and low-cost control over water flow.
• Yellow Indicator that shows the operator which way the disc is facing.
• Includes an electronic signal switch that communicate with a control panel and alarms when the valve's disc rotates.
• Top/Test Standard ISO5211 / API 598.

Why is the Grooved Type Butterfly Valve with Signal Switch Your Top Choice for Flow Control in Fire Sprinkler and Standpipe Systems?

The HBF-300G is designed for reliable control of water flow in fire protection systems. Its grooved connection ensures quick and efficient installation, while its robust construction allows long-term, dependable operation. This valve provides precise flow control, making it a trusted choice for protecting fire sprinkler and standpipe systems.

Frequently Asked Questions(FAQ) about Grooved Type Butterfly Valve With Signal Switch

Q1: What is the purpose of the Signal Switch on the UL Grooved Type Butterfly Valve with Signal Switch?

The Signal Switch on the UL Grooved Type Butterfly Valve with Signal Switch is a valve supervisory switch designed for fire sprinkler system monitoring. It monitors whether the butterfly valve remains in the fully open position.

When the valve is closed or moved away from its fully open position, the switch sends a supervisory signal to the fire alarm control panel. This helps alert maintenance personnel to possible valve tampering or accidental water shut-off, ensuring the sprinkler system remains ready to supply water during a fire emergency.

Q2: Why choose an NSF certified Grooved Type Butterfly Valve with Signal Switch?

An NSF certified Grooved Type Butterfly Valve with Signal Switch helps meet drinking water safety requirements while providing flow control and valve position monitoring in water supply systems. For projects that require potable water compliance, the NSF certified model provides documented certification support under NSF/ANSI/CAN 61 and NSF/ANSI 372, helping contractors and engineers select a valve suitable for drinking water-related applications.

Q3: What is the difference between the UL listed and NSF certified models of the HBF-300G Grooved Type Butterfly Valve with Signal Switch?

The HBF-300G Grooved Type Butterfly Valve with Signal Switch is available in different certified model options for different applications. The UL listed model is designed for fire protection systems, while the NSF certified model is designed for drinking water and water supply systems.

The UL listed model is mainly used in fire sprinkler systems, standpipe systems, and zone control stations. It includes a signal switch for valve position monitoring and helps prevent accidental water shut-off in fire protection piping.

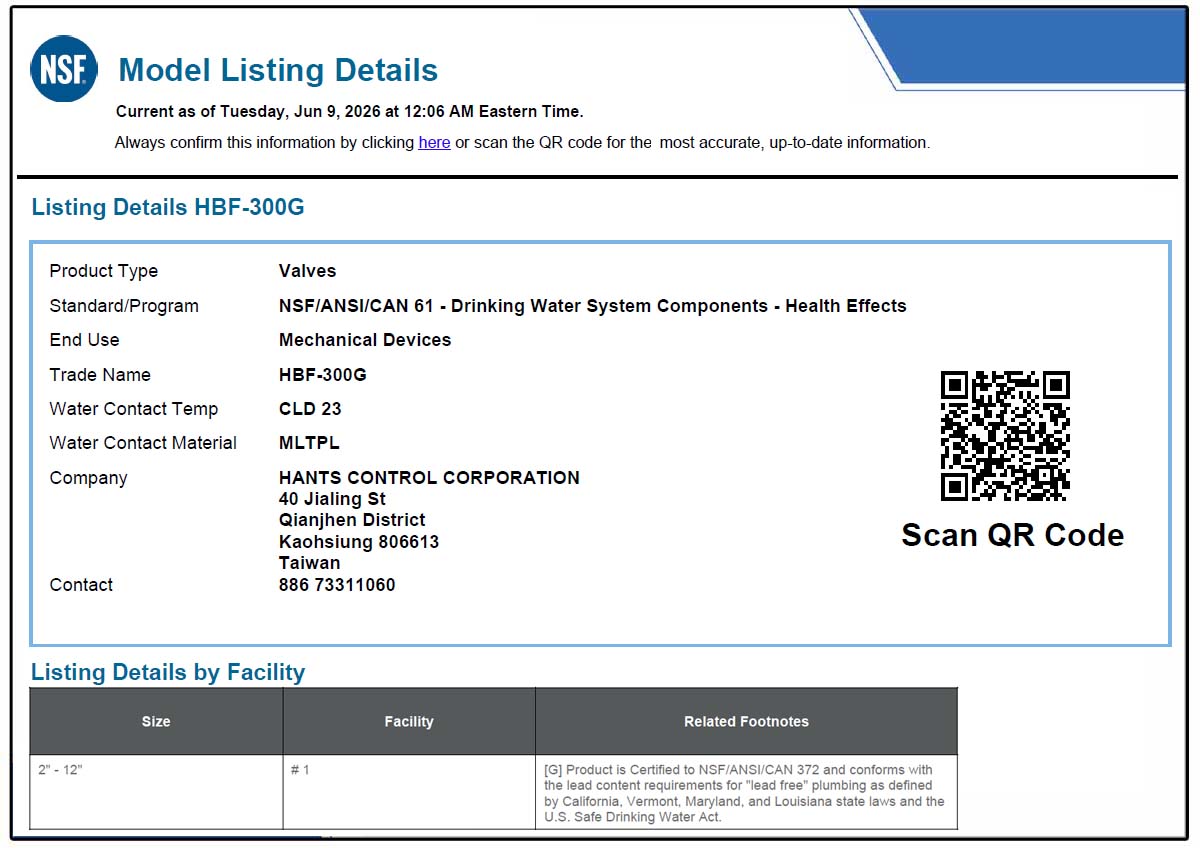

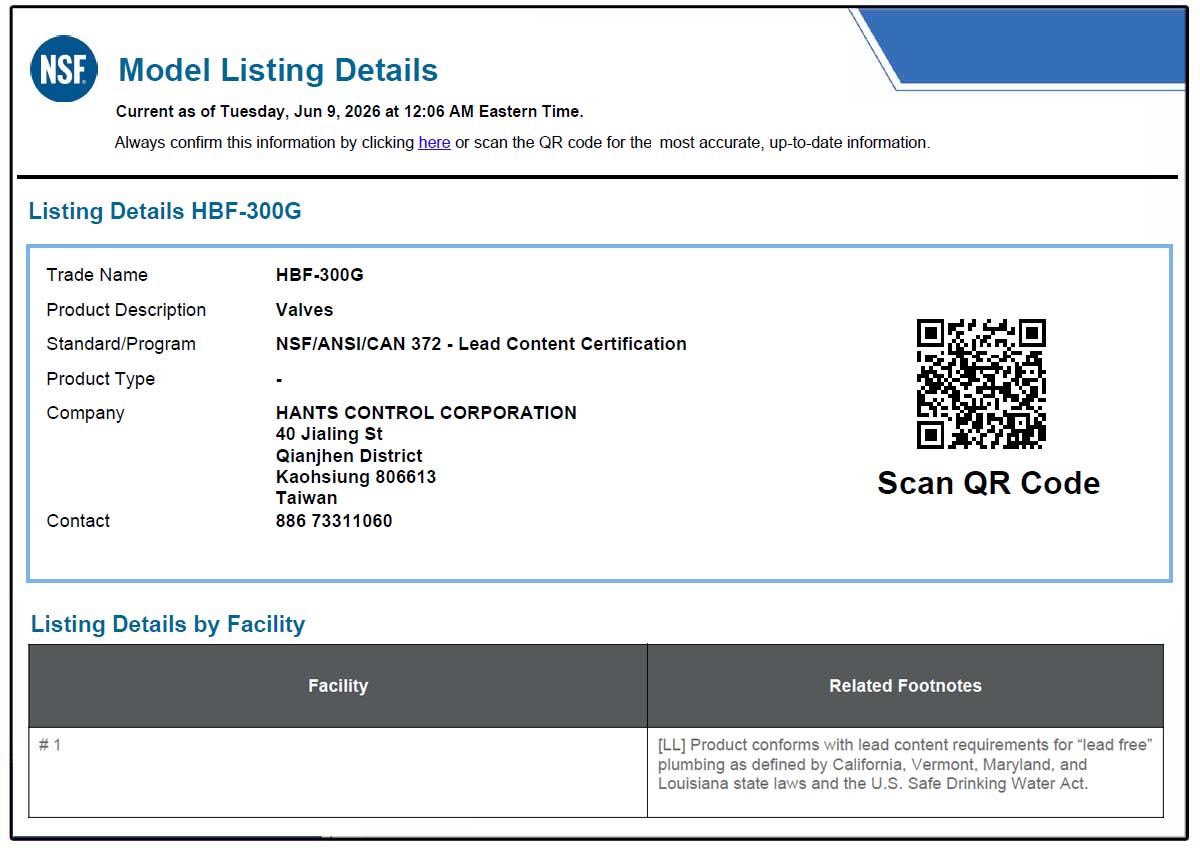

The NSF certified model is mainly used for drinking water and water supply applications. This model has been certified to NSF/ANSI/CAN 61 (Drinking Water System Components – Health Effects) and NSF/ANSI 372 (Drinking Water System Components – Lead Content). These certifications help verify that the valve's wetted components have been evaluated and certified for potable water-related use.
