Float Valve Diaphragm with Pilot Design

Pressure Control Valve Manufacturer in Taiwan

Home
Products
Diaphragm with Pilot Design
Float Valve

Download Catalogue

DTF / DFF

CI;DI; Bronze; SS
Thread & Flange 1.5” to 10”
Max Pressure 10kgf/cm²
EPDM & NBR

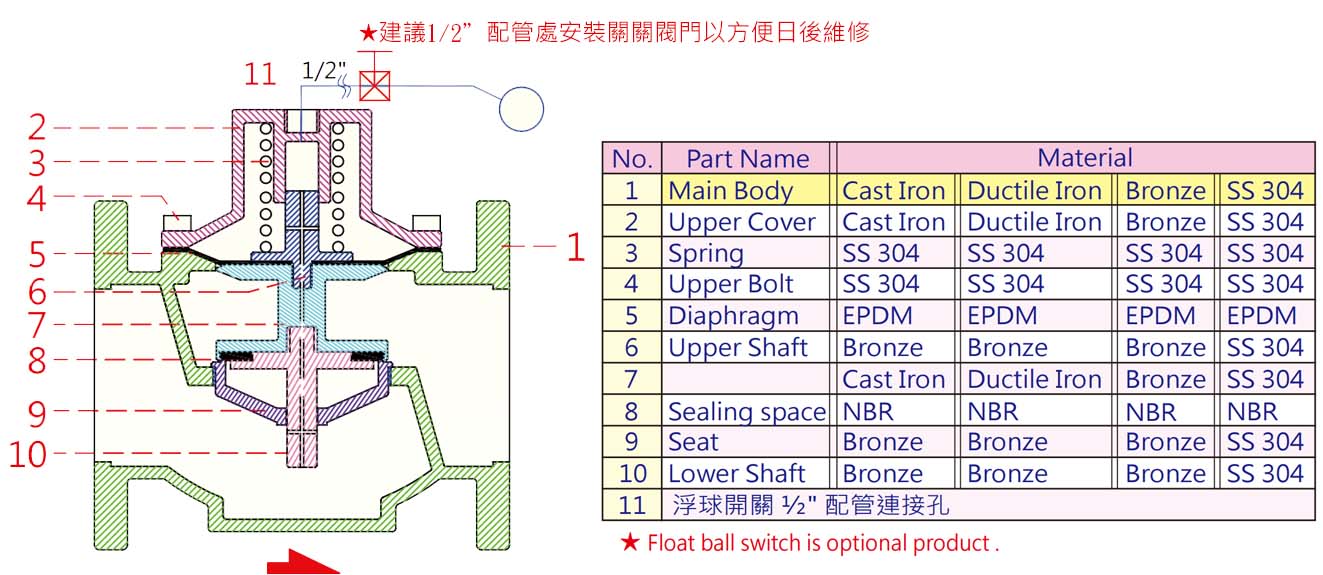

Model DTF / DFF, The Diaphragm design Float valve has one major function and that is to stop the flow of water from an inlet supply line. The float valve rises as the water level rises. Once a specified water level is reached, this will cause the one-way valve to be activated and shut off the water entry.

Features

◆ Minimum working pressure at 0.5kgf/cm².

◆ Supply with Stainless Steel 4” Float Ball and Control Switch.

◆ 1/2” PT thread connection to Main Body.

Datasheet Add to inquiry
